3M EMI Shielding Gasket Tapesfor Industrial and manufacturing
Choosing 3M™ Electrically Conductive Gasket Tapes for grounding and shielding includes basic application requirements beyond just tape thickness and bond line thickness. You can choose solutions for such specific factors as compressibility, electrical resistance for grounding under compression, contact surface, shielding performance, operating temperature range and environmental conditions.
3M™ Electrically Conductive Gasket Tapes are compressible electrically conductive open cell urethane foam gaskets with single or double coated conductive adhesives. These XYZ-axis conductive gaskets deliver excellent conductivity to ground two surfaces – even across wide gaps – as well as low electrical resistance for EMI shielding.
Gasket tape types
Whether you need a single-sided gasket tape to ground a sensor or a double coated adhesive gasket tape to help prevent ESD, 3M has a solution. We also offer shielding in the bond line gap. 3M has a conductive gasket tape for your unique design.
-

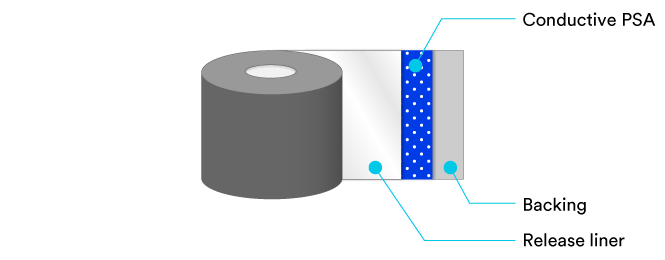

Single sided gasket tapes3M™ Electrically Conductive Gasket Tapes are available with acrylic pressure sensitive adhesive applied to one side of a compressive, laminated conductive foam/fabric carrier. It is excellent for ESD grounding as well as securing conductive connections and EMI shielding enclosures.
-
Double coated gasket tapesConductive acrylic pressure sensitive adhesive is applied to both sides of a highly compressible polymeric foam gasket. 3M™ Electrically Conductive Gasket Tapes deliver EMI shielding, contact grounding, and flexibility for complete gap filling in the bond line. They also provide a mechanical cushion to help protect from mechanical shock and vibration in electronic devices.
