Streamline your paint booth process and workflow.

• Efficient use of materials is crucial as paint materials are getting increasingly more expensive. Overmixing paint not only wastes resources but can also increases costs. Mixing only the necessary amount of paint can further enhance efficiency. Painters often mix two to three extra ounces of sealer, basecoat, and clearcoat per job to avoid running out of paint. By grouping jobs, the extra sealer and clearcoat can be shared between jobs in the same cycle, reducing potential waste. Some paint companies’ mixing software have calculators that can help determine how much paint to mix. Tinting your primers can also help reduce the amount of basecoat that is required for coverage.
• Proper spray gun setup can help maximize transfer efficiency and waste less paint. If a spray gun is set at too high of a pressure or has too wide of a pattern, this results in more paint being wasted as overspray and less paint hitting the panel. This creates a significant loss of transfer efficiency.
• Proper application techniques are also important to minimise waste. When the spray gun is too far away from the panels when spraying, a lot of paint can be wasted in the form of overspray. Also, if a painter doesn’t properly release the trigger as they come off of the panel, a significant amount of paint will be wasted. Lastly, some painters simply apply too much paint. Proper coverage should be checked after each coat. Sometimes an extra coat of paint is applied, when coverage was already achieved with the previous coat.

• A dedicated booth schedule is essential to maximizing paint shop productivity. The average body shop, regardless of paint line, typically completes roughly 4 booth cycles a day. To get the most out of those cycles, building a booth schedule is recommended. A helpful way of doing this is to attach a dry erase board to the side of each paint booth. Here, shops can write and plan out all of their cycles for the next day. A best practice is to always plan an extra cycle. This extra cycle can be used if all of the other cycles are finished early or if one of the other cycles has to come out of the schedule due to unexpected complications (i.e, missing parts, pinholes, etc.). A filler section should also be included on the booth schedule. This section is where additional small parts that come in throughout the day that need painting, can be added. Painters should look to pull some of these parts from the filler section into openings within the other cycles to maximize efficiency.

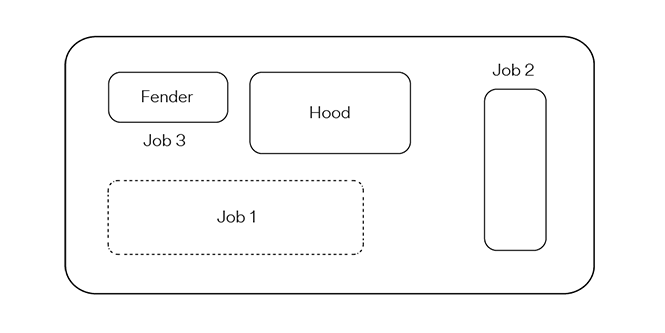

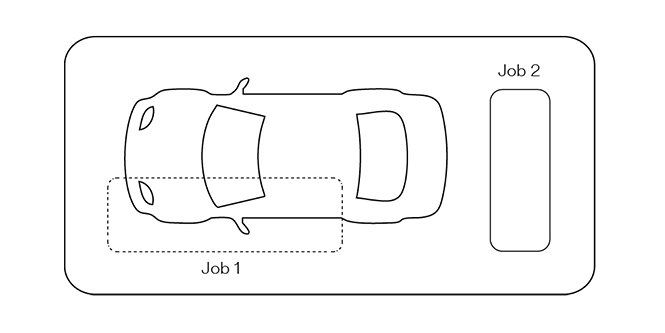

• A good practice to adopt to help visualize and pre-plan booth cycles is called “floor staging.” Floor staging is utilizing an area outside of the booth where painters can figure out how to organize parts more effectively. Taping off a “spray zone” on the floor outside of the booth can help painters organize parts more effectively. The “spray zone” is typically 3 feet away from each wall to allow room for the painter to spray. Painters can know exactly how much space they have, allowing them to fit parts efficiently without overcrowding the booth.
• When organizing parts in the booth, maintaining the correct distance is essential. Parts of different colours should be at least 3 feet apart to prevent colour contamination, while parts of the same colour can be close together. In addition, try to group tri-coats by themselves, when possible.

Improving paint booth efficiency requires a combination of strategic planning, practical techniques, and a willing- ness to adapt to new practices. This involves a thorough assessment of current workflows and identifying areas where time and resources are being wasted. By focusing on organization, shops can streamline their operations, ensuring that every step in the painting process is well-coordinated and efficient.
