Discover power that goes way beyond bonding.
-
Like no one else, 3M can help you with your bonding challenges in automotive display design and assembly. Our range of bonding solutions is built on nearly a century of adhesive development. We can enhance your power to take on today’s most difficult challenges: the ever-growing mix of dissimilar substrates, curved surfaces, narrow and ultra-thin bond lines and more.
-
Nelson Goncalves Pimentel, 3M Company, “How 3M Can Protect Your Automotive Display”
Watch our expert discuss the changing automotive display trends and implications for display bonding. This presentation describes the current requirements and solutions, including test methods for predicting and simulating the effects of head and rear impact, reducing stress and improved sealing.
-
3M Display bonding
Design. Performance. Safety.
Design. Performance. Safety.
Apply nearly a century of adhesive expertise and
technology to your information display design and
assembly. Our technology is here to help you meet
todays most complex design challenges, while
protecting critical electronics.Apply nearly a century of adhesive expertise and
technology to your information display design and
assembly. Our technology is here to help you meet
todays most complex design challenges, while
protecting critical electronics.
Display Cover Bonding
-
3M™ VHB™ TapesCombining the strength and reliability of an acrylic adhesive with the conformability of an acrylic foam core, our 3M™ VHB™ Tapes bring a unique balance of performance to information displays:
- Shock and Vibration Control: this viscoelastic material absorbs shocks and relax stress for better impact resistance, cyclic fatigue resistance and greater design flexibility
- Bonding: Strong adhesion strength and heat resistance
- Premium sealing: 100% closed-cell construction to seal out contaminants, moisture and chemicals
- Tape format: Convenient to use and can be die-cut to pre-formed shapes
3M™ VHB™ Tape 5952 Family:Very conformable acrylic foam core tapes deliver a great balance of adhesion on a variety of substrates, impact resistance and sealing properties.
3M™ VHB™ Tape 4941 Family:These conformable acrylic foam core tapes feature good static shear properties for superior holding power.
-

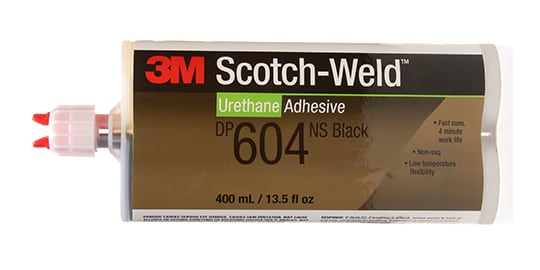

3M™ Liquid AdhesivesWith plenty of strength even for bond lines below 0.5mm wide, our liquid urethane adhesives are excellent for thin device designs and assemblies. These one-part adhesives deliver the reworkability of a PUR – often critical for recovery of valuable displays – but can be laminated as a PSA for immediate handling strength.
Download 3M™ Plastic Bonding Adhesive 2665B Technical Data (PDF, 187 KB)
Optical Bonding
3M™ Optically Clear Adhesives
-
Our Contrast Enhancement Films (CEF) are highly specialised, optically clear adhesive films that deliver excellent clarity and adhesion to transparent substrates. ITO compatible and featuring pressure-sensitive adhesive, they are designed specifically for applications requiring soft contrast enhancement films for filling thick ink step or lens border frames. Specialised optically clear adhesives are available in die-cut parts.
Download 3M™ Contrast Enhancement Film CEF19 Auto Technical Data (PDF, 308 KB)
Display Component Bonding
Our wide array of tape solutions combines the simplicity of pressure-sensitive adhesive (PSA) with strength, conformability, anti-lift properties, impact resistance and optical clarity. Many of our instrument panel adhesive tapes are suitable for difficult-to-bond surfaces including polycarbonate, polyamides and polyethylene terephthalate.
-
3M™ Impact Resistant Adhesive Transfer Tapes 95000 Series and Double Coated Tapes 95100 SeriesFormulated specifically for higher resistance to impact – maintaining critical stability at expressway speeds – these tapes have excellent vibration damping and are very conformable, enabling flexibility in design. They also combine high peel adhesion with high bonding strength to a wide variety of materials, so electronic displays and components can more easily withstand the constant jostling and impact the road hands out.
3M™ Impact Resistant Adhesives Transfer Tape 950XX Series (PDF, 147KB)
3M™ Impact Resistant Adhesives Transfer Tape 951XX Series (PDF, 11.1MB)
-
3M™ Conformable Double Coated Tape 934XXThis technologically-advanced 3M tape enables performance levels previously not possible for a Double Coated Tape with a PET carrier. These proprietary technologies make the tape more drop resistant and shock absorbing, and offer an exceptional balance of properties including excellent anti-lifting, great chemical resistance, temporary removability and versatile adhesion to low and high-surface-energy materials.
Download 3M™ Conformable Double Coated Tape 93420 Brochure (PDF, 813 KB)
3M™ Conformable Double Coated Tape 93425 (PDF, 812 KB)
Download 3M™ Conformable Double Coated Tape 93430 Brochure (PDF, 813 KB)
-
3M™ Adhesive Transfer Tapes and Double Coated Tapes for Flexible Printed Circuits (FPC)There is no one-size-fits-all solution for flex bonding. Your success requires a reliable FPC bonding method specific to your intricate design. 3M flexible circuit bonding solutions can address your specific challenges, including hard-to-bond surfaces, anti-lifting on curved substrates, or high temperature resistance.
3M™ Adhesive Transfer Tape 9471LE
-
3M™ Ultra Clear Double Coated Tape UCTxxThis tape is excellent for products that are backlit or require light transmission. It is so clear, it practically disappears – the tape delivers 90% light transmission with only 1.1% haze, ideal for display screens and touchscreens throughout the information display system. Ultra-clear tape features a polyester film carrier for dimensional stability and a high-tack adhesive for good shear holding power.
3M™ Ultra Clear Double Coated Tape UCT-10 (PDF, 141 KB)
Display Bonding Technical Data Sheets
View the most frequently requested Display Bonding Technical Data Sheets (TDS) at the link below.
Work with an expert
Tap into 3M’s deep automotive technology by connecting now with the experts who help solve what seems unsolvable.
